Africa Popular 1.5-2.5mm Thickness Upright Rack Roll Forming Machine

Africa Popular 1.5-2.5mm Thickness Upright Rack Roll Forming Machine


1. Upright Rack Roll Forming Machine Technical Parameter


2. Upright Rack Machine’s Components





3. Upright Rack Profile drawing

1.Finished products:90/100/120x70 racks with holes punching

2.Raw material request: galvanized steel

3. We have experience of exporting our pallet racking roll formers to Mexico, Peru, Costa Rica, India, etc.

4. We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need.

5. In warehouse pallet racking system, we are able to manufacture more machines like upright section roll forming machine and shelf panel roll forming machine etc.

4.Application

Pallet racking roll forming machine is widely used in producing upright frame, box beam and step beam. Our intelligent roll forming machine could make wide range of sizes using cantilever type structure, and automatically change by motors from one size to the other not only at width but also at height. The one and only step is to put your required data into our touch screen and wait for few seconds. Machineable thickness is from 1.5-3.0mm with raw material Cold-rolled Steel, Galvanized Coil, PPGI, Carbon steel, Stainless Steel and Aluminum. Our produced profile meet ISO, CE , FEM standards, and our machine is applied to Warehouse ,supermarket ,industry or home.

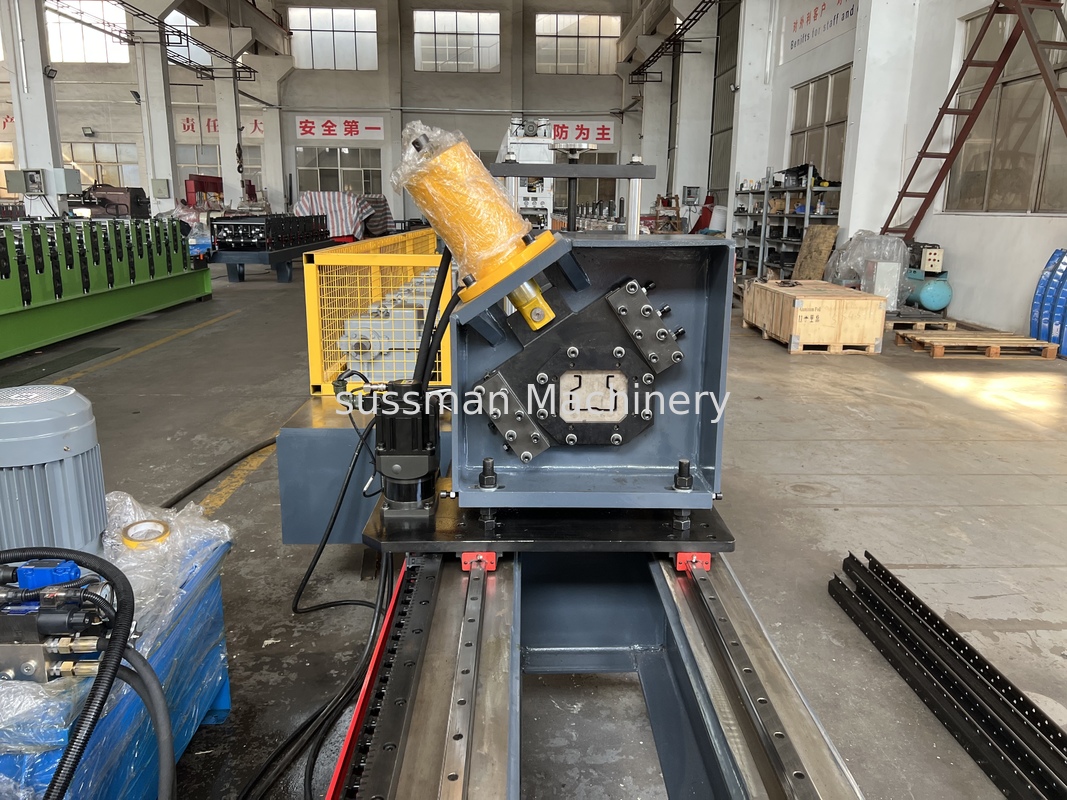

5. Upright Rack Machine Photo
